GILDEMEISTER CTX 600ECNC- lathe
Used machine
Technical data
- swing diameter over cross slide
- 480 mm
- swing diameter over bed slide
- 670 mm
- turning length
- 2000 mm
- speed range
- 2800 rpm
- spindle bore
- 107 mm
- turret
- 12 -station
- speed of driven tools
- 2500 rpm
- driven tools
- yes

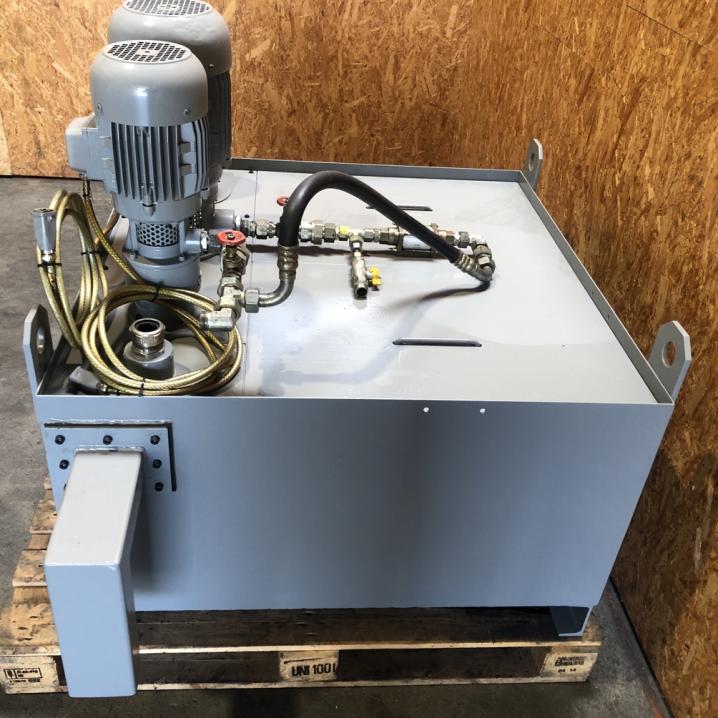

- coolant system
- ja

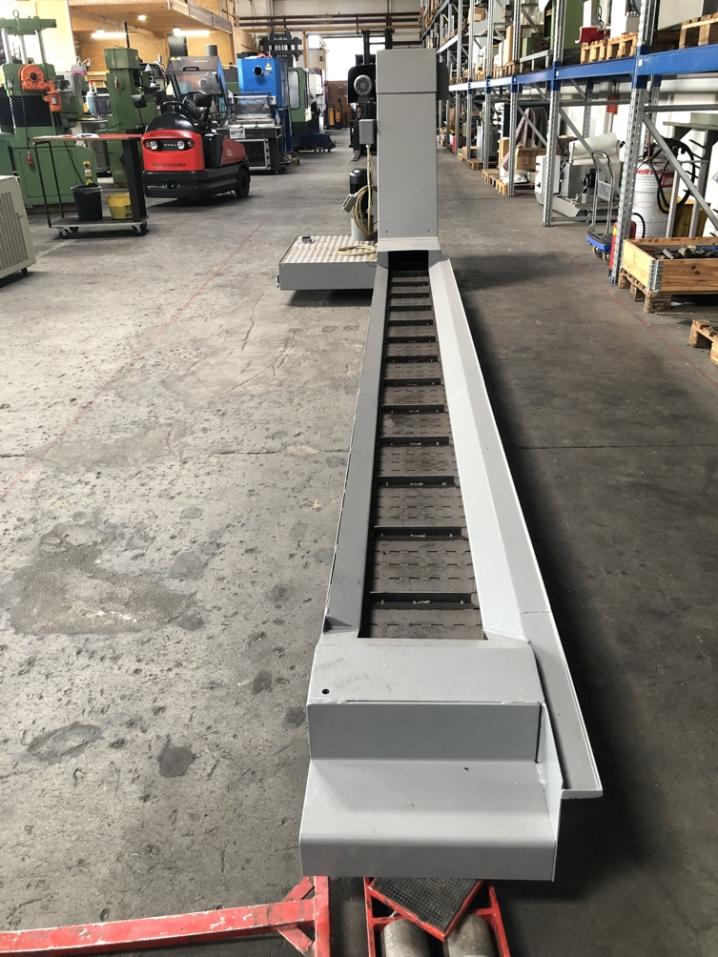

- chip conveyor
- yes
- control
- Heidenhain CNC Pilot 3190
- chucks
- Roehm Ø 400 m jaws
- machine on
- 77517 h
- spindle on
- 28962 h
- total power
- 38 kW
- weight of machine
- 10.000 kg
- space requirement (W x D x H)
- 7,6 x 5,4 x 1,9 m
- condition
- very good
Details
Main drive motor and gearbox overhauled, spindle with new bearings, ball screws X, Z new, scraper sliding plates new, oil mist extraction, chuck Röhm FD-HS 400-3 - ID 414896, hollow clamping cylinder SMW Autoblok type ZHDC-SN125/93, two gear stages
Accessory

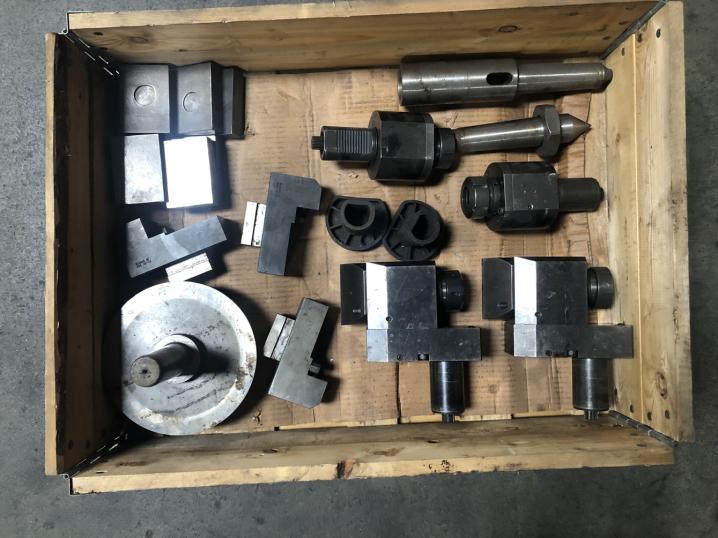

towable steady rest max. clamping diameter 245 mm, towable tailstock, 4 driven tools (axial and radial),1 set of jaws
Used Machines
buy from a dealer with 20 Years of experience
This CNC- lathe type CTX 600E by GILDEMEISTER was tested by our service technicians and can be demonstrated with power enabled.
If desired, you can get the all-round package from us: transport, installation and alignment, commissioning and instruction or training. We know what matters – we can machines
